Faster Barrier Preparation. Lower Rig Costs.
Predator delivers stabilized multi-string section milling that protects outer casing and reduces costly wellbore trips

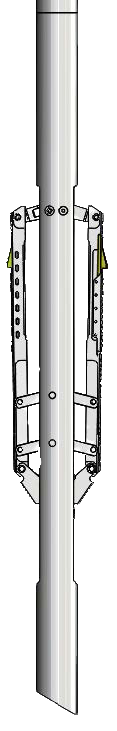

The Predator section milling technology was developed to meet the need to mitigate sustained casing pressure, provide the best environment for barrier placement and save cost through less rig time by saving trips in the well.
The Predator enables stabilized multiple string section milling while ensuring no harm to outer casing stings regardless of casing eccentricities.
Predator Features
- Patented Sweep Expansion Limiter (SEL) prevents damage to outer casing
- Reduces torque while milling
- Bi-directional: single, dual, and triple string section milling
- Unique pressure chamber drive system
- Exclusive modular blade design
- Designed to drift restricted ID’s
- Equipped with proprietary Reaper tungsten carbide inserts
- Mud motor utilization optional
Multiple patents issued and/orpending both foreign and domestic*
Tool Attributes
| 5.75 Predator | 7.875 Predator | |
|---|---|---|
| Body OD (in) | 5.75 | 7.875 |
| Tool Length with Top Sub (ft) | 13′ 2″ | 14′ 7″ |
| Approx. Tool Weight (lbs) | 800 | 1700 |
| Milling Direction | Up/Down | Up/Down |
| Drift Casing (in) | 7 | 9.625 |
| Section Mill Casing (in) | 7 – 13.625 | 9.625 – 18.625 |
| Burnish Casing (in) | 8.625 – 13.625 | 10.75 – 20 |
| Top Connection | 3 1/2 IF BOX | 4 1/2 IF BOX |
| Top Sub Jetting | 3 Upward 1 Downward |
3 Upward 1 Downward |
| Flow-Through Jetting | 1 Downward | 3 Upward 1 Downward |
