Controlled Upward Section Milling
Advanced stabilization, reduced torque, and configurable protection for multi-string casing integrity.

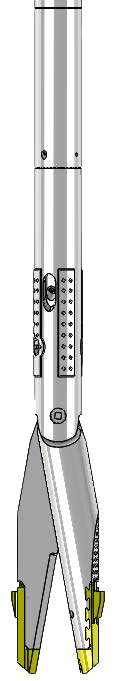

The SCORPION section mill is engineered for efficient upward section milling in both single- and multi-string environments, extending operational capability across smaller casing diameters and complex well conditions. Its patented Sweep Expansion Limiter (SEL) protects outer casing while reducing milling torque, and its hydraulically optimized, dual-piston design supports a wide range of flow rates for consistent downhole performance.
Supported by configurable blade sweeps, flow-through jetting for effective cuttings evacuation, and proprietary Reaper tungsten carbide inserts, the Scorpion delivers precise material removal and dependable section-milling execution on pipe or coiled tubing—expanding next-generation abandonment solutions across 4-inch to 9-5/8-inch casing applications.
Scorpion Features
-
Patented Sweep Expansion Limiter (SEL) prevents damage to outer casing
- Reduces torque while milling
- Optimized and efficient design utilizing a single pin system for field serviceability and minimal components
- Dual-Piston allows for wide range of operational flow rates
- Designed for single and dual string milling
- Coiled tubing or pipe deployment
- Equipped with proprietary Reaper tungsten carbide inserts
- Mud motor utilization optional
Multiple patents issued and/orpending both foreign and domestic*
Tool Attributes
| 300 Series Scorpion | 350 Series Scorpion | |
|---|---|---|
| Body OD (in) | 3.375 | 3.8 |
| Tool Length with Top Sub (ft) | 5′ | 5′ 10″ |
| Approx. Tool Weight (lbs) | 105 | 165 |
| Milling Direction | Up | Up |
| Drift Casing (in) | 4 | 4.5 |
| Section Mill Casing (in) | 4 – 5.5 | 4.5 – 7 |
| Burnish Casing (in) | 4 – 9.625 | 4.5 – 9.625 |
| Top Connection | 2.375″ PAC DSI BOX | 2.375″ PAC DSI BOX |
| Top Sub Jetting | 1 Upward 1 Downward |
1 Upward 1 Downward |
| Flow-Through Jetting | 2 Downward | 2 Downward |
